Description

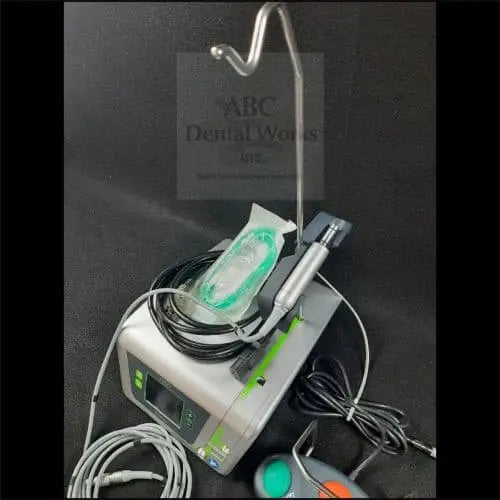

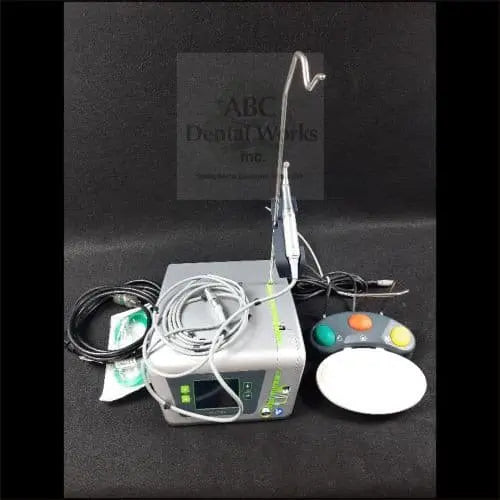

W&H Elcomed SA-310 Control Unit offers precision, power, and streamlined usability for maxillofacial surgery, dental surgery, and implantology. These barely used units come from a working environment and are in excellent condition. Each unit includes a COMPLETE Handpiece, delivering a ready-to-operate solution right out of the box.
Why choose the Elcomed SA-310
- Single operating stage for setting all necessary parameters, delivering intuitive control in demanding procedures.
- Six programmable procedures with individually adjustable parameters, enabling fast, repeatable workflows.

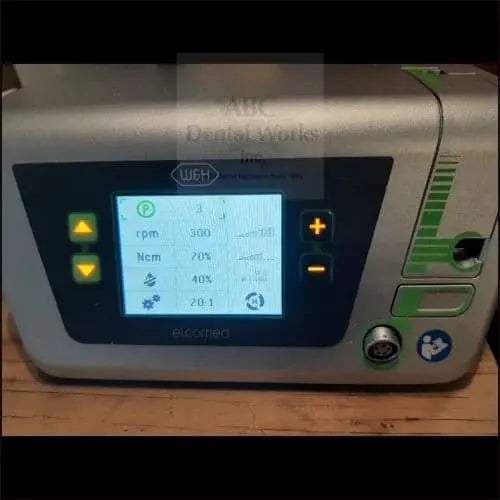

- All information on one display for quick reference during complex surgeries.
- USB documentation access for complete records and setup details.
- Compact, lightweight motor delivering up to 50,000 rpm with minimal fatigue for the surgeon.
- High rotary instrument torque up to 80 Ncm for robust performance across procedures.
- Automatic thread cutter enhances efficiency and precision in daily use.
- Disinfectable and sterilizable components (thermo washer compatible) for reliable hygiene.

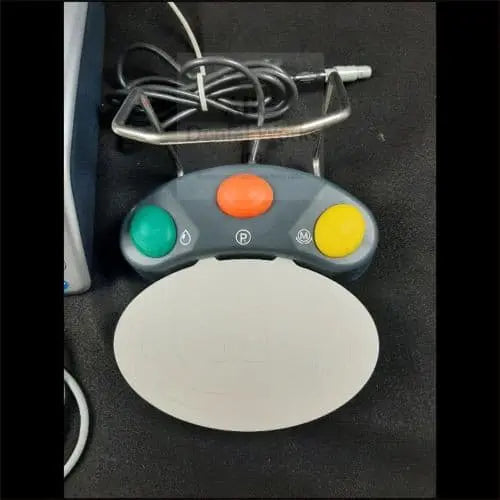

- Foot control for hands-free, precise operation during surgery.
Technical specifications
- Mains voltage: 100–130 V or 220–240 V, 50/60 Hz
- Max mechanical output power: 100 W
- Max torque at the rotary instrument: 80 Ncm
- Max torque at the motor: 7 Ncm
- Motor speed range in nominal voltage: 300 min-1 – 50,000 min-1 (safety stop at 40,000 min-1)
- Intended transmission instruments: ISO connection 3964 (DIN 13.940)
- Length of motor cable: 1.8 m or 3.5 m
- Coolant flow rate at 100%: at least 90 ml/min
- Foot control: Yes
- Height x Width x Depth: 109 x 256 x 305 mm
What’s included

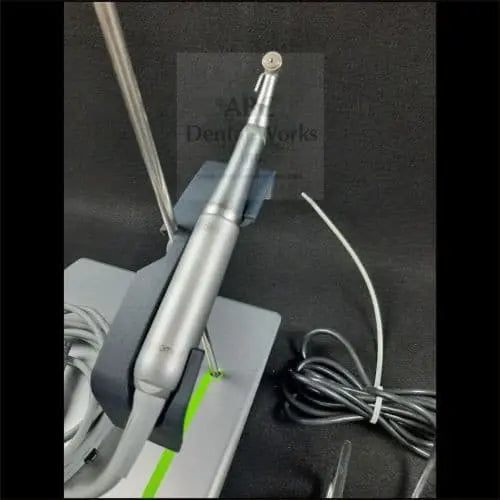

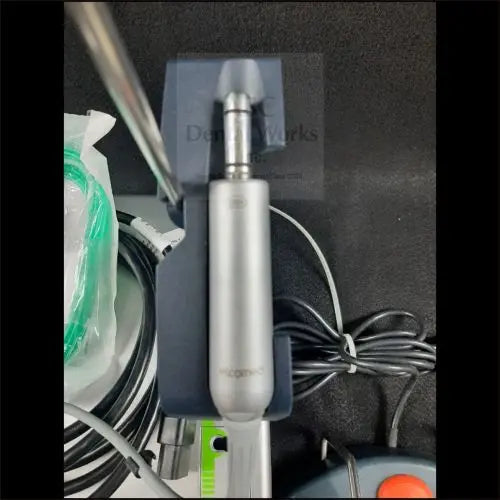

- Complete Handpiece with each unit
- Integrated control unit designed for maxillofacial, dental, and implantology work
- Documentation via USB flash drive for easy setup and record-keeping
