A-dec 14.0471.00 Water Bottle Remote Kit – Cabinet/Wall Mount

A-dec 14.0471.00 Water Bottle Remote Kit – Complete

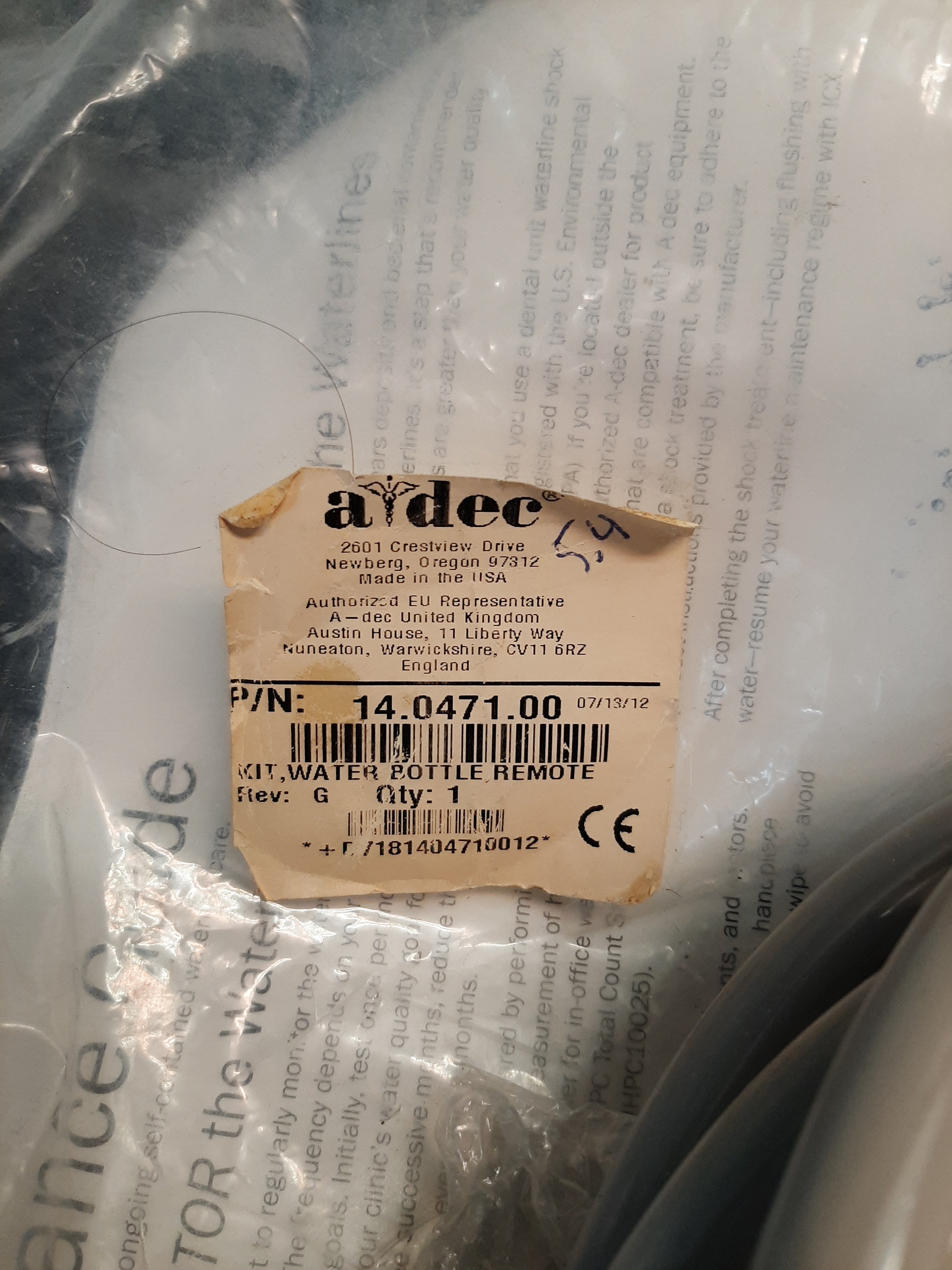

This is a complete A-dec remote-mount water bottle kit, A-dec part number 14.0471.00. A-dec's parts catalogue lists it as "WTR Bottle Kit, Remote"; the factory box label on this kit reads "KIT, WATER BOTTLE REMOTE". It mounts the self-contained water bottle away from the delivery unit — in a cabinet, in upper storage, or on a wall — instead of on the unit arm or post, which frees the delivery head and puts the bottle at a comfortable height for filling.

Specifications

• Manufacturer: A-dec
• OEM Part Number / MPN: 14.0471.00 (verified against the A-dec parts catalogue and the factory label on the kit)
• A-dec's part name: WTR Bottle Kit, Remote
• Component Type: Remote-mount self-contained water bottle kit
• OEM Status: OEM — A-dec, Newberg, Oregon, made in the USA
• Mounting: Four-hole flat plate for cabinet, upper-storage door, or wall

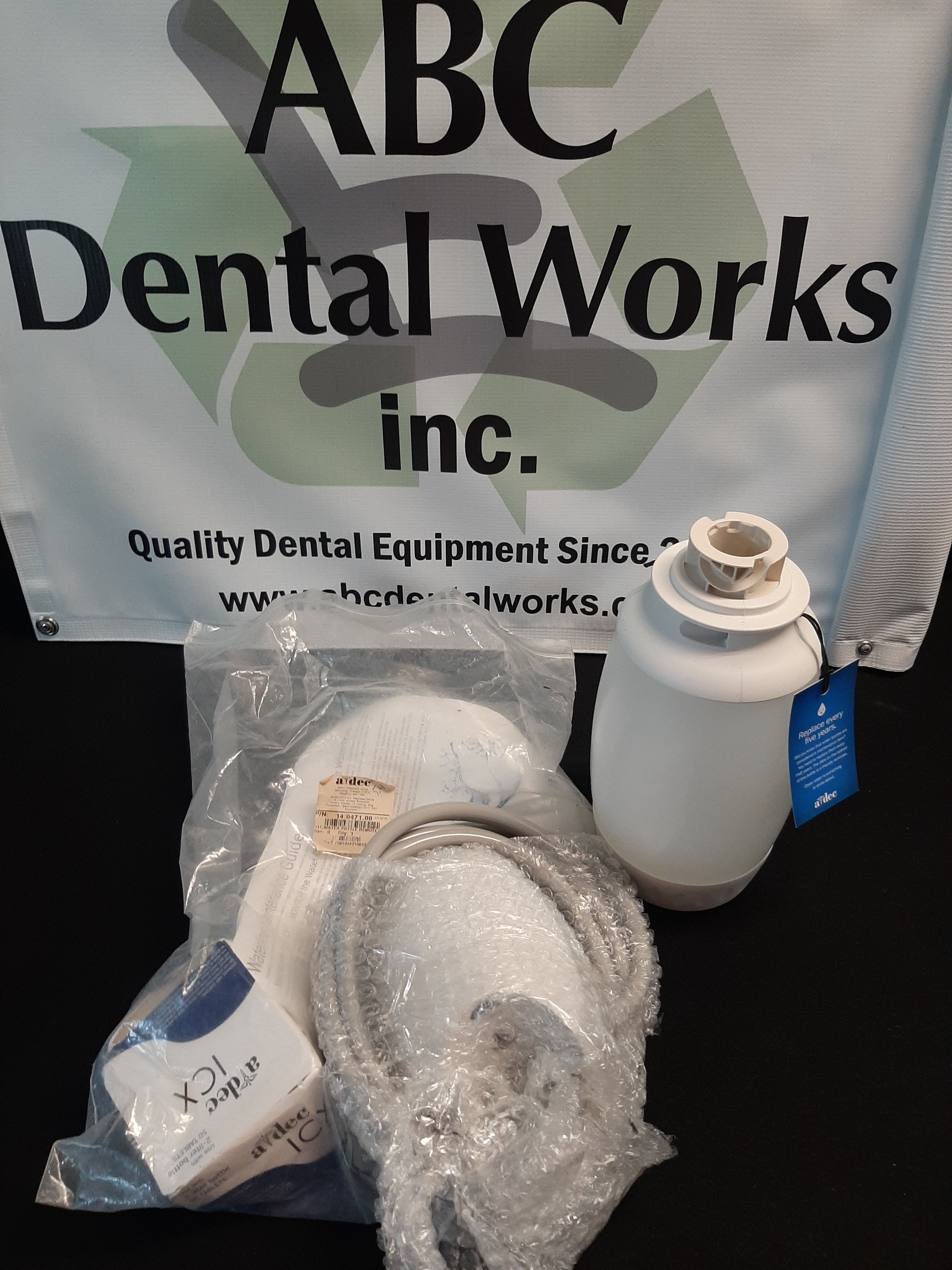

What's Included

• A-dec self-contained water bottle with cap and quick-disconnect adapter
• Bottle housing / cradle assembly
• Coiled water supply tubing
• Four-hole mounting plate and bottle bracket, with hardware
• A-dec ICX waterline treatment tablets (50-tablet box)
• A-dec Self-Contained Water System Instructions for Use
• A-dec Remote Mount Water Bottle Installation Guide (86.0459.00 Rev E)

Tools You Will Need

Per A-dec's installation guide: 1/8" hex key, drill, 3/16" drill bit, Phillips head screwdriver, and diagonal cutters.

Where It Mounts

A-dec provides pre-drilled mounting locations for this kit in Preference Collection cabinetry — upper-storage doors and open-space modules — and in A-dec Inspire consoles. The included installation guide lists the exact cabinet and console models with factory-drilled locations, and the plate can also be mounted to any suitable cabinet or wall surface you drill yourself. Measure for clearance before you drill: the bottle needs room below the mounting point. Call 727-388-4223 with your cabinet or console model and we will confirm the fit before you order.

Factory Applications

Per A-dec's parts catalogue, 14.0471.00 is the water bottle kit built into A-dec's 341 flat-mount assistant's assemblies (77.2270.00, 77.2271.00, 77.2272.00, 77.2273.00) and assistant's instrumentation kits (90.1305.01, 90.1310.01, 90.1311.01). It will also serve any A-dec delivery system running a self-contained water bottle that you want mounted remotely rather than on the unit.

Need the Unit-Mount Version Instead?

This kit mounts remotely, on a cabinet or wall. If you need the bottle mounted on the delivery unit post itself, that is a different A-dec part — A-dec 14.0484.00 Water Bottle Kit, Post Mount. The two are not interchangeable.

Condition & Testing

• Inspected by ABC Dentalworks prior to listing

Parts Policy

All parts are sold as tested and working to specification at the time of shipment. Please verify compatibility with your specific dental unit before ordering — once a part is opened or installed, it is final sale. See our full Return, Refund & Warranty Policy for details.

Need Help?

Not sure this water bottle kit matches your setup? Call ABC Dentalworks at 727-388-4223 or email sales@abcdentalworks.com — we're happy to help confirm compatibility before you order.
